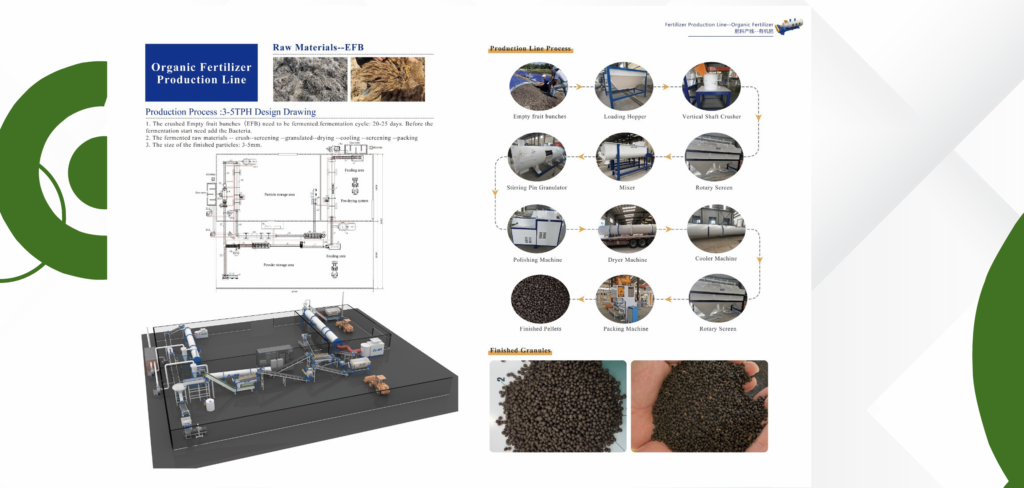

Organic Fertilizer System
Organic Fertilizer System adalah terobosan inovatif untuk mengatasi permasalahan limbah di pabrik kelapa sawit (PKS).
Sistem ini merupakan perpaduan antara fermentasi dan komposting yang memberikan solusi efektif untuk isu lingkungan terkait limbah pabrik. Produk yang dihasilkan dari sistem ini dapat digunakan sebagai pupuk organik.
Biomas Pellet Pirolisis System
Sistem ini memanfaatkan tandan kosong kelapa sawit (TKKS) yang diolah menjadi pelet dengan menghilangkan kandungan kalium, sehingga pelet tersebut dapat digunakan sebagai bahan bakar di power plan (boiller)

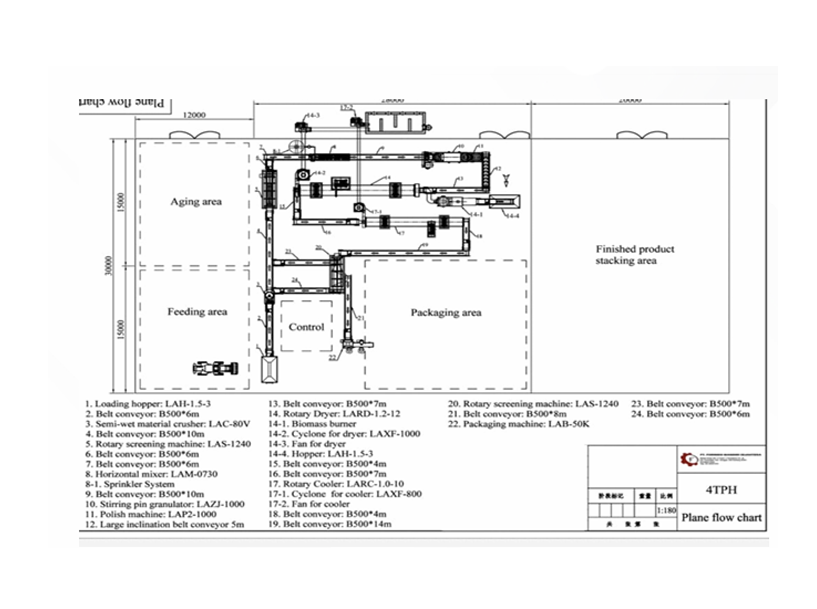

Pellet on Pirolisis

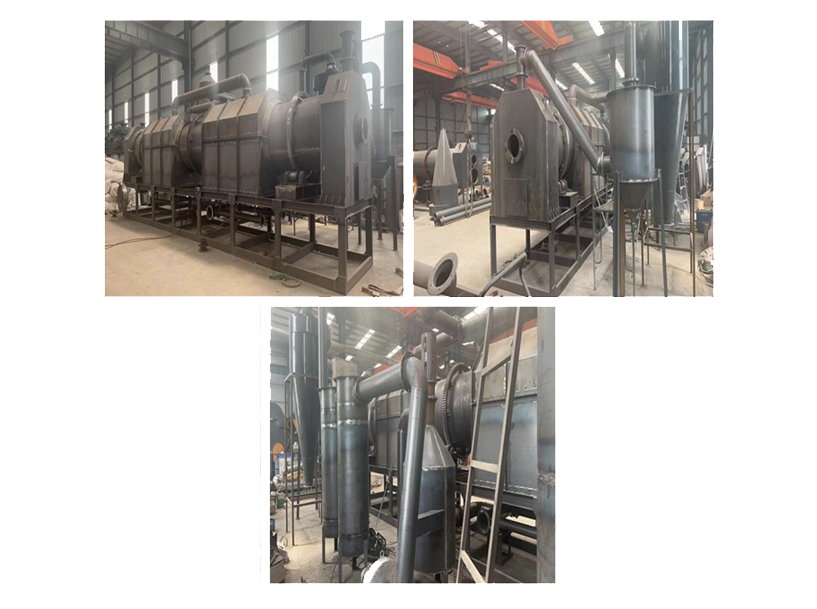

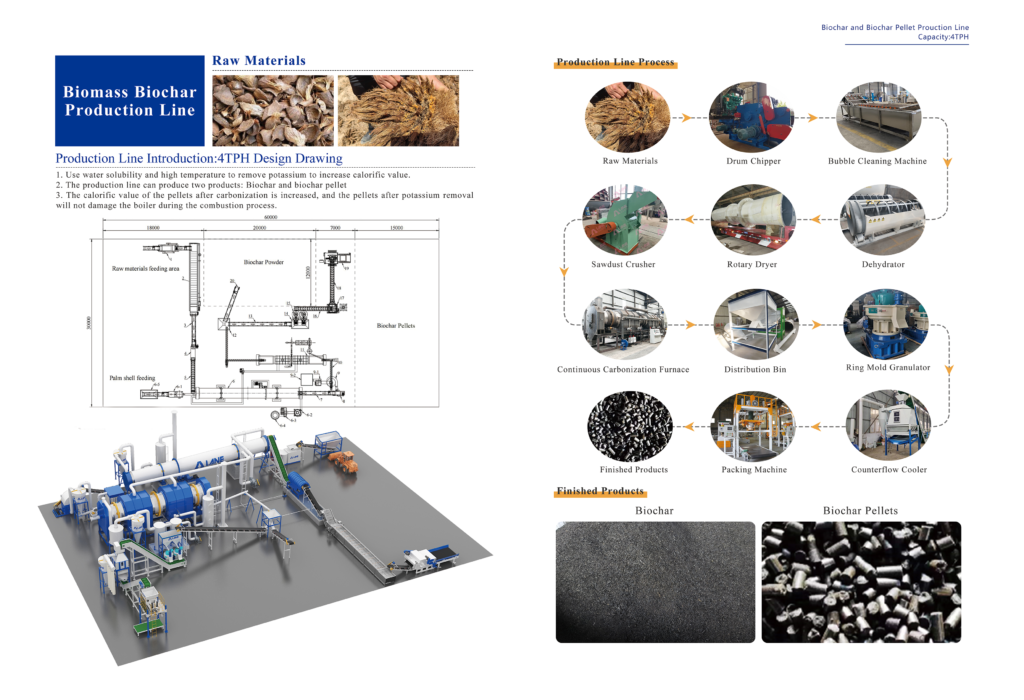

Biochar Pirolisi System
Memanfaatkan tandan kosong kelapa sawit (TKKS) melalui proses pirolisis dapat menghasilkan biochar. Biochar ini memiliki berbagai manfaat, antara lain meningkatkan kesuburan tanah, mengurangi emisi gas rumah kaca, dan menekan biaya penggunaan pupuk. Dengan demikian, penggunaan TKKS sebagai bahan baku biochar tidak hanya mendukung pertanian berkelanjutan tetapi juga berkontribusi pada upaya mitigasi perubahan iklim.

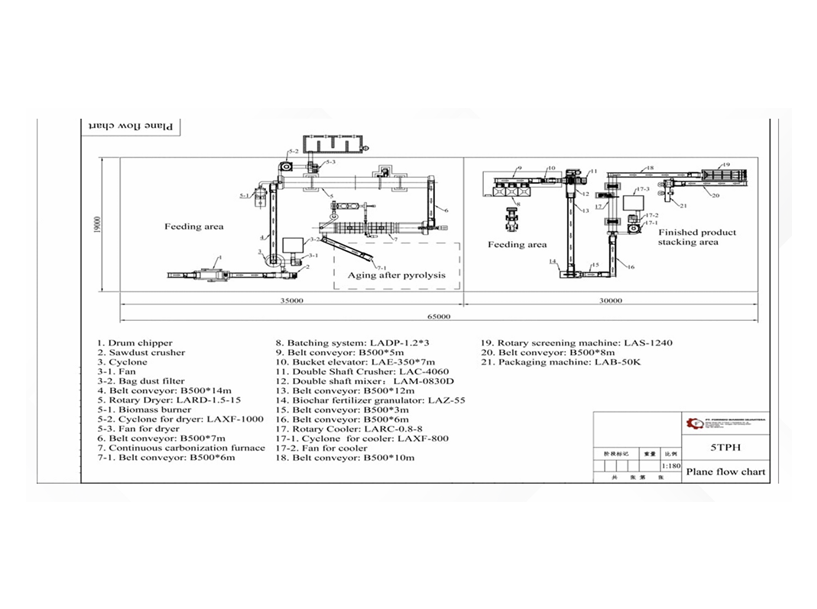

Biochar Fertilizer System

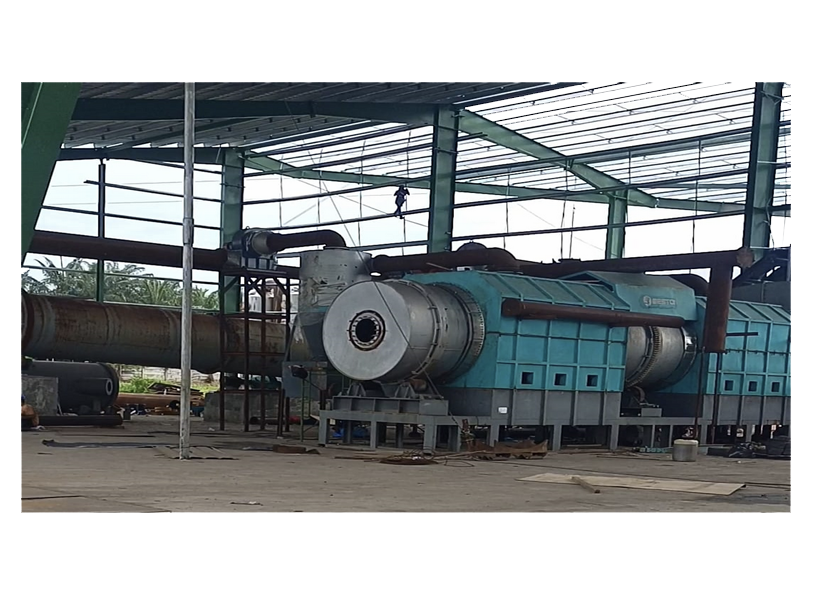

Activated Carbonate
Proses ini melibatkan dua tahapan utama. Tahap pertama adalah karbonisasi, yang bertujuan untuk menghilangkan sebagian besar bahan non-karbon dengan pemanasan pada suhu 400°C – 600°C.
Tahap kedua adalah aktivasi, yang bertujuan untuk mengembangkan struktur pori. Proses aktivasi ini dapat dilakukan dengan dua metode, yaitu aktivasi fisika dan kimia.

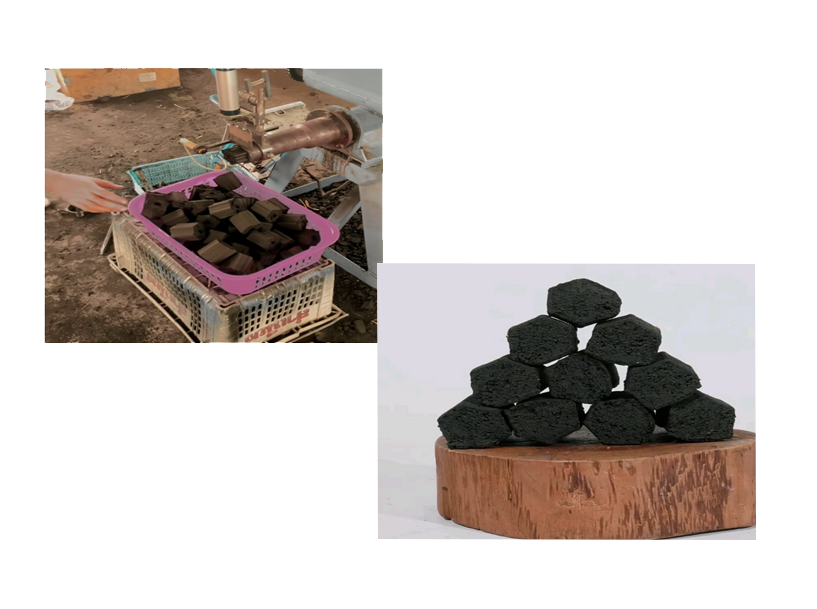

Charcoal System
Our Product Catalog

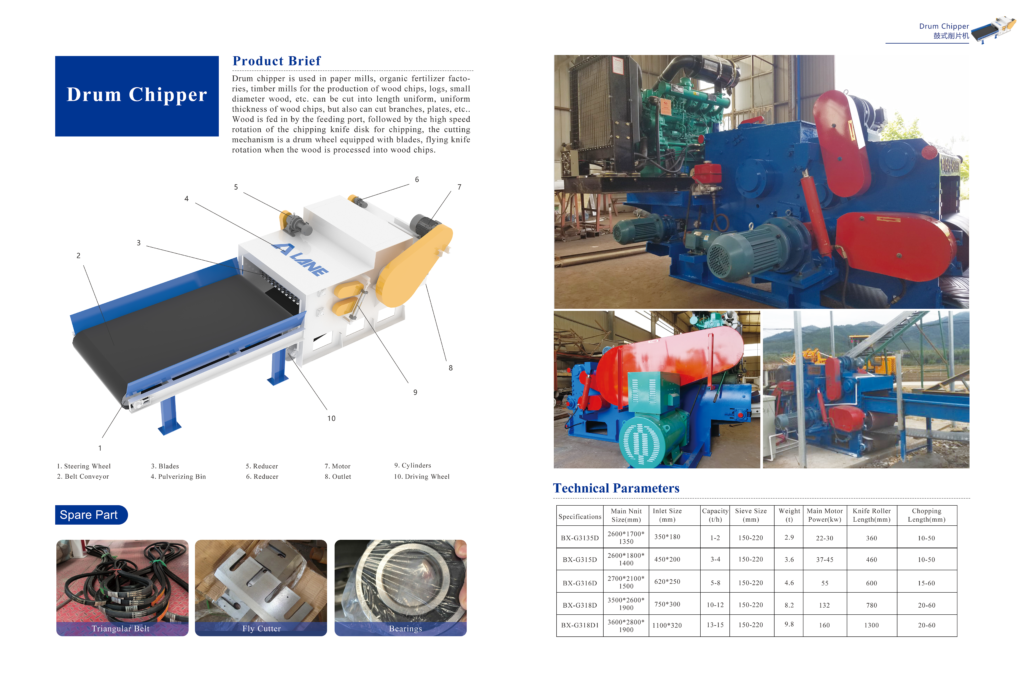

Drum Chipper
Model : LABX-315Z
Capacity : 3-4TPH
Body thickness : 16-18mm
Strong Bolt : Grade 10.8
Host Power : 37-45kw-41 unit Auxiliary power : 3.0/2.2/2.2/2.2/1.1 = 11.7 kw/5 units Electric control cabinet: standard reduced voltage start Material opening size : 450200mm
(widened feeding opening model)
Raw material requirements : within
450200mm Feeding form : 4-meter belt skip conveyor Discharging form : 3m secondary discharging belt conveyor Spindle speed : 750 rpm Screen size : 150-220mm Number of cutting knives : 4 flying knives, 1 bottom knife, 1 reverse cutting knife Knife ro ler length : 460mm Knife ro ler diameter : 500mm Shredding specifications: about 10 – 50mm long Taiwan time output: 6 – 8m³ Host size : 26001800*1400mm
Total weight of equipment : about 3.6T
Function : Palm fruit bunch crushing
pretreatment

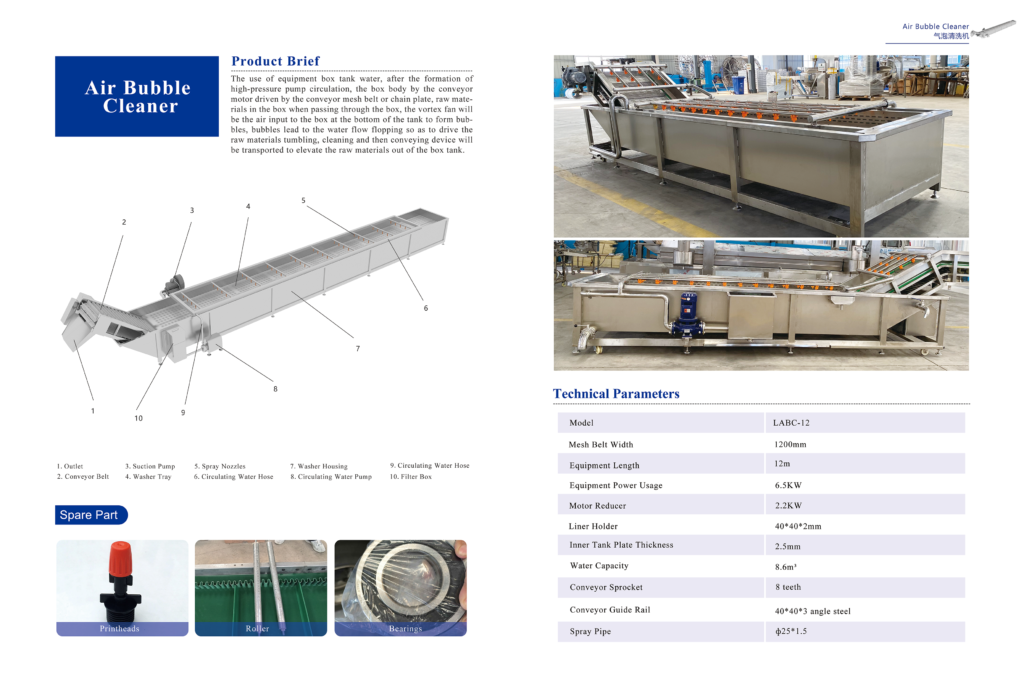

Bubble Cleaning Machine
Model : LABC-12
Equipment mesh belt : plate chain
Mesh belt width : 1200mm
Equipment length : 12m
Water capacity 8.6 cubic meters
Equipment power usage : 6.5KW
Running speed : frequency conversion
speed regulation
Box : plate thickness 2mm
Reinforcing rib : square tube 50502mm
Inner tank load-bearing bracket : 40403
angle steel
Motor reducer : 2.2KW
Inner tank plate thickness 2.5mm
Liner holder : 40402mm
Conveyor chain plate :1200
Conveyor sprocket : 8 teeth
Conveyor guide rail : 40403 angle steel
Spray pipe : ф25*1.5 Nozzle : 6515
Quick connect : ф51/ф32
Function : Water-molten Potassium,
Cleaning and Soaking

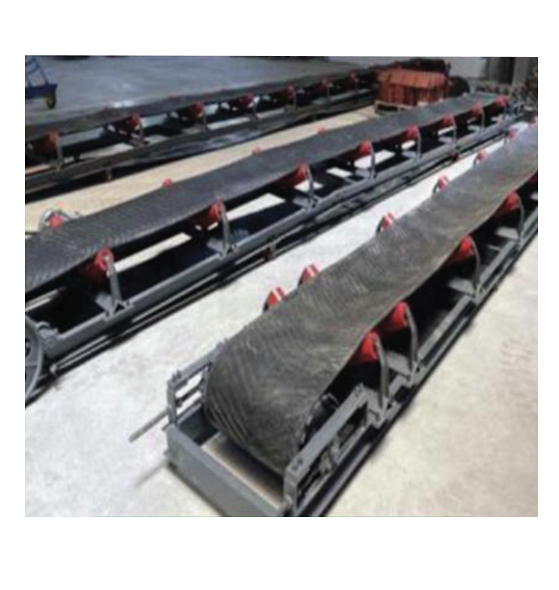

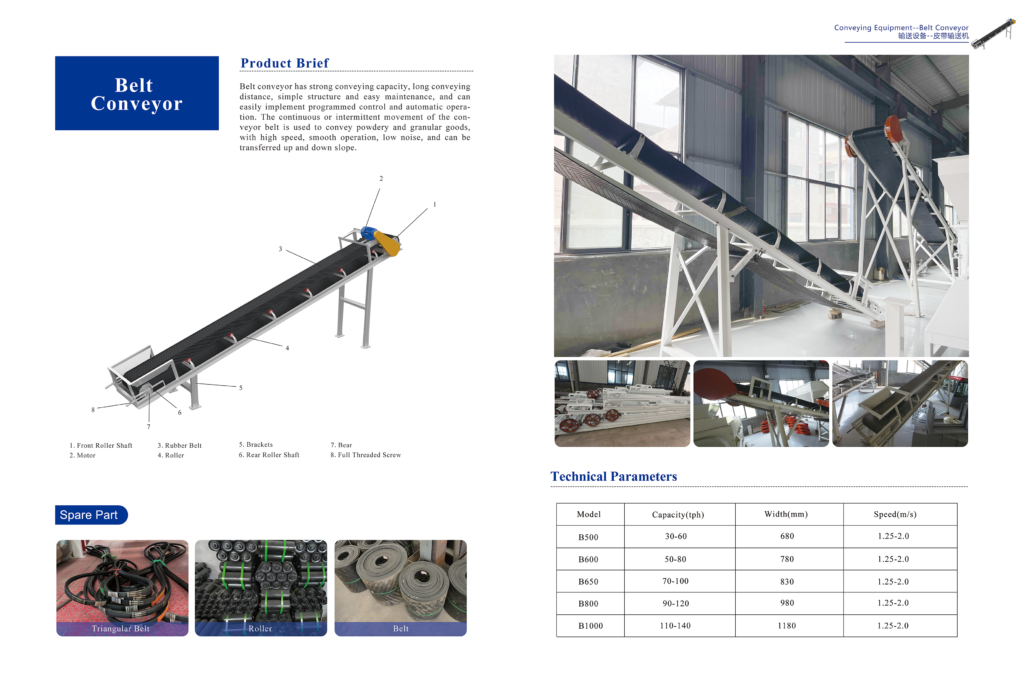

Belt Conveyer
B500*8m
Belt width : 500mm
Total length : 8m
Motor : 4kw, copper wire motor
Provide the support leg
Thickened non-slip rubber layer
5-ply canvas belt
Frame : #10 U shape steel
Colect the pelet and connect it with the
count-flow cooler

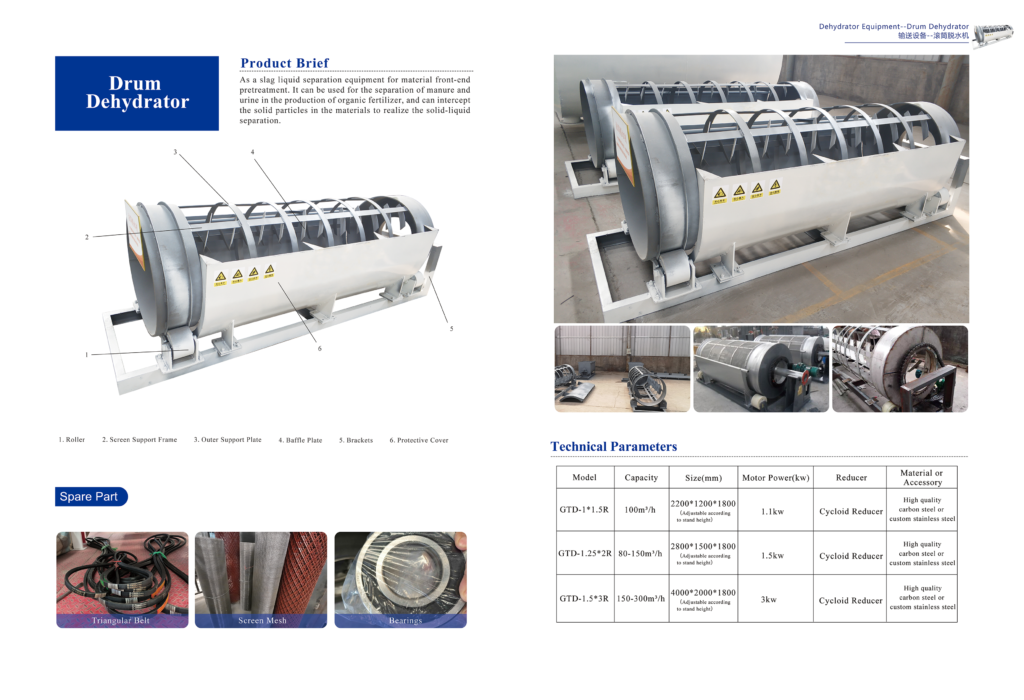

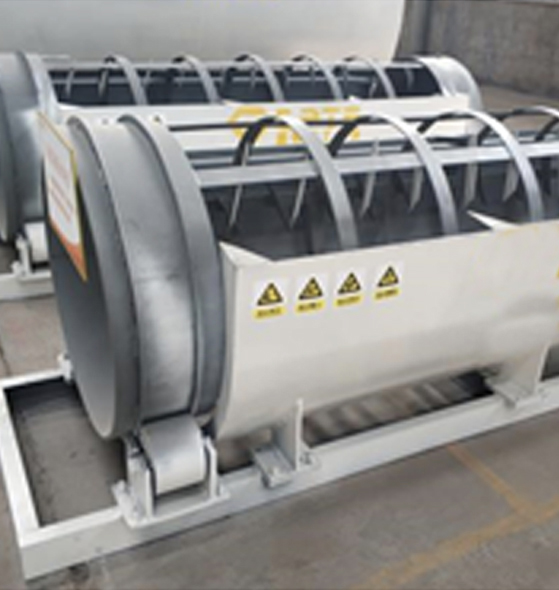

Dehydrator
Model : LADE-1020
Capacity：4-5TPH
Equipment size : 220012001800
Filter pore size can be customized
Filter material stainless steel
11 KW horizontal level 4 national standard
copper wire motor
Speed : 1450r/min
With bracket, custom screen
Rapid dehydration of raw materials

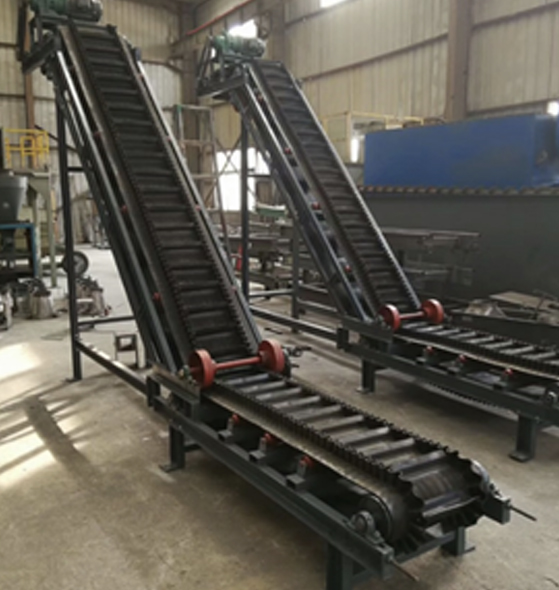

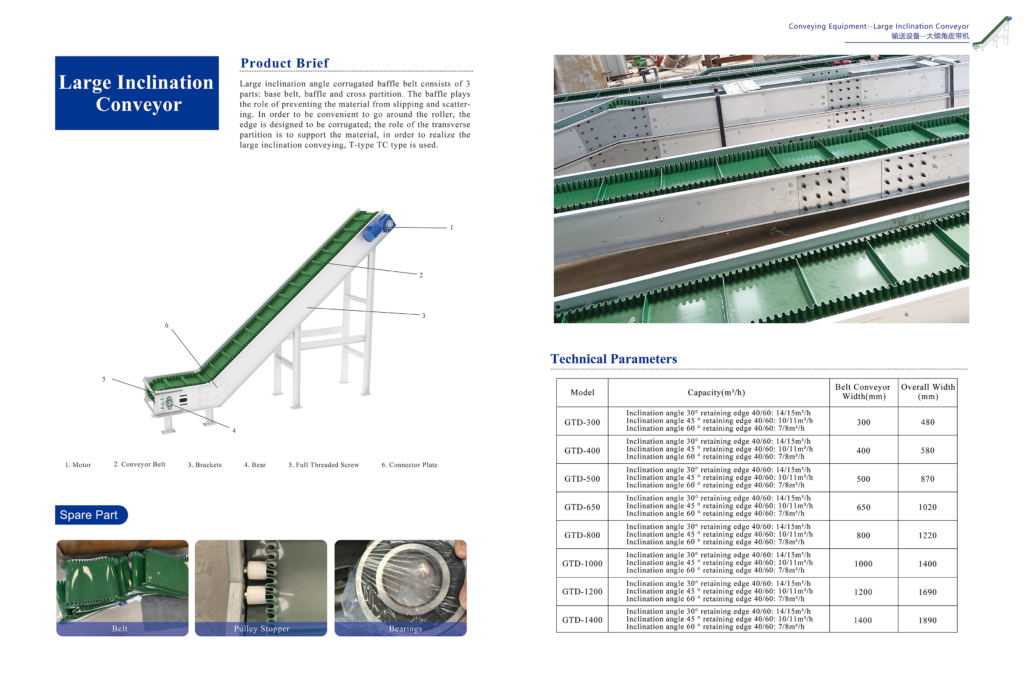

Large Inclination Belt
Conveyor
Model : GTD-650
Capacity : 6-8T/H
Speed : 1.25 – 2.0m/s
Motor : 3kw
Inclination : 45
Length : 7m
Belt width : 650mm
Machine width 720mm
Frame : 10# channel steel
L type
With bracket, transporting powdery materials

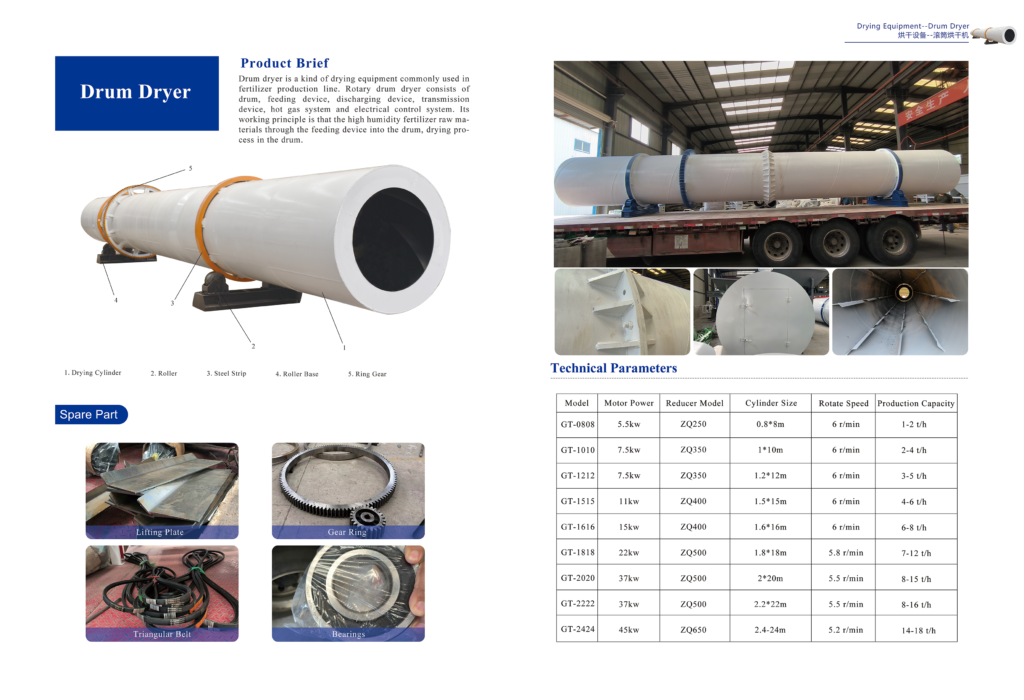

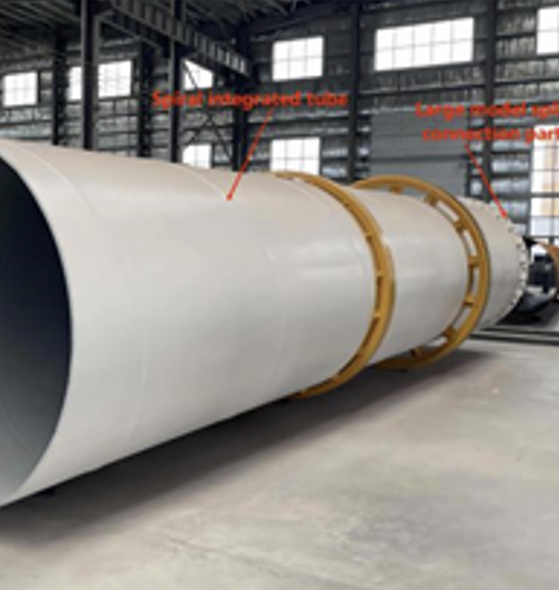

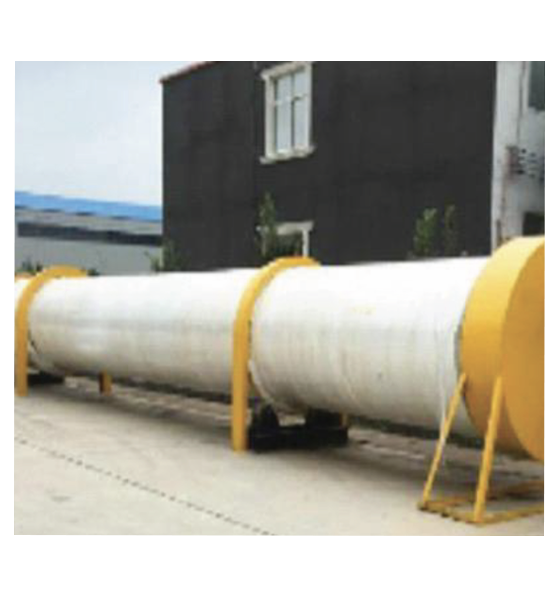

Rotary Dryer
Model : GTRD1515
Output 5 – 8t/h
Barrel size : Φ1500*15000mm
Speed : 5r/min
Slope : 2-2.5°
Motor power : 15
Axial thickness of ro ling belt : 120
Roling belt radial thickness : 75
Ring gear axial thickness : 110
Ring gear radial thickness : 56
Steel plate thickness : 12mm,
Lifting plate thickness : 6mm
Front and rear head plates : 6mm thick steel
plate
Roling rings, gears, gear wheels, supporting
wheels, etc. are a l heavy steel castings

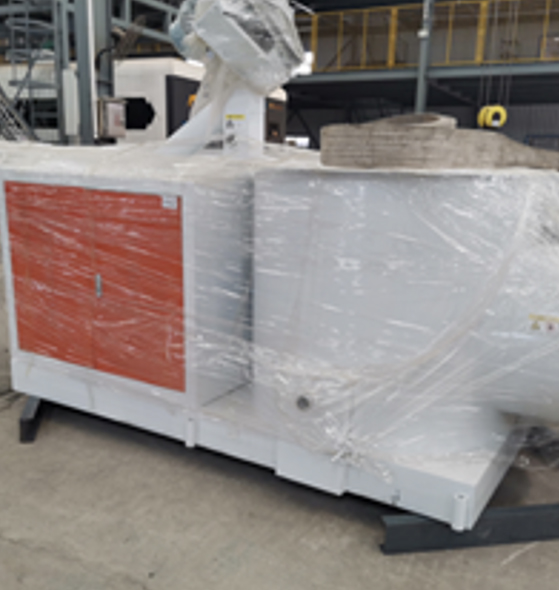

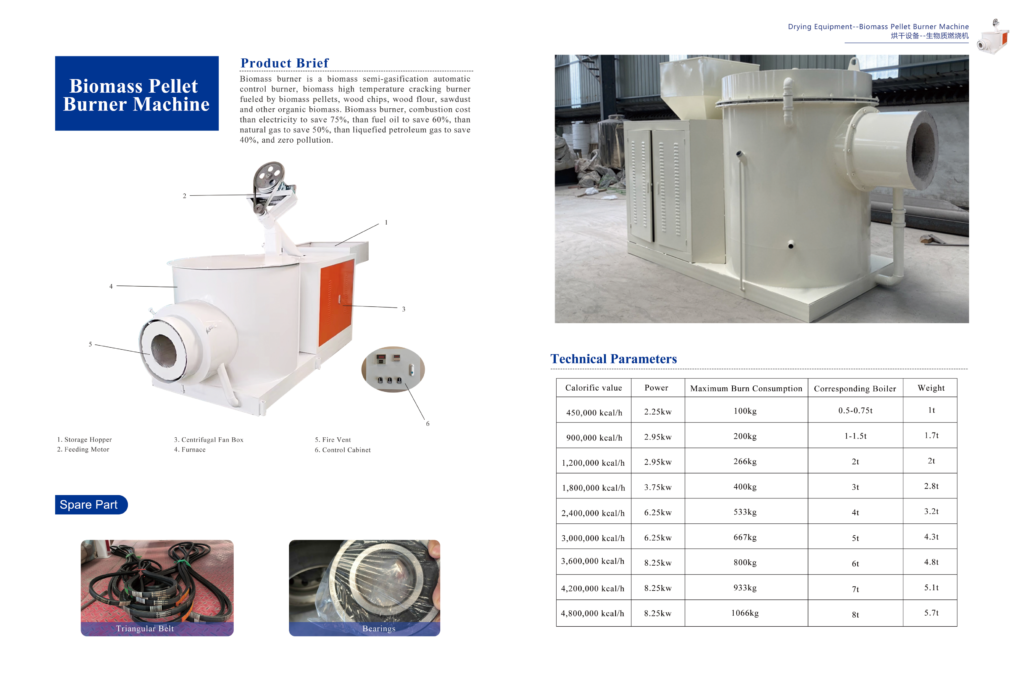

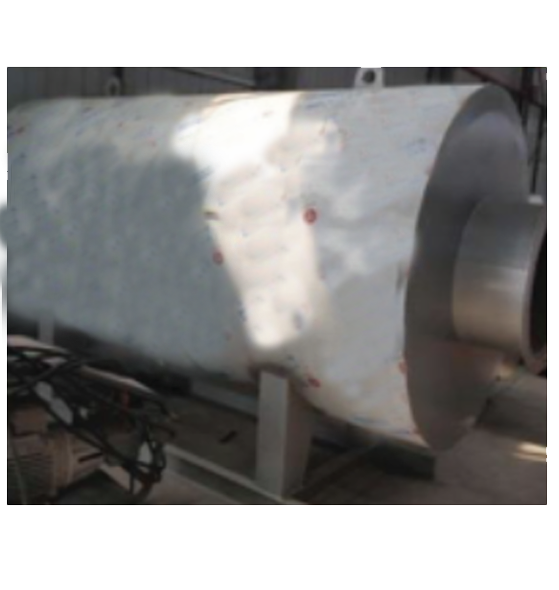

Biomass Burner
Model : GTRF-250
Heat output : 2.5mi lion kcal
Machine weight : 3000kg
Power : 7.55kw
Inner diameter of burner : 325mm
Fire mouth center height : 850mm can be
customized
Insta lation size : 4000160001650mm
Contains high temperature resistant
thermocouple (maximum detection
temperature 800 degrees)
Thermostats and Bimetalic Thermometers
Including electric control cabinet
(380V/50HZ/3P)
Fuel : biomass pelets

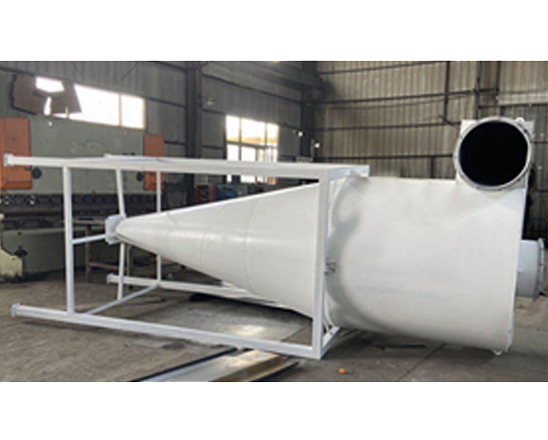

Cyclone for Dryer
Model : GTXF-1000
Dust removal diameter 800, Sheet 2.5mm
Discharge port with air lock valve (baffle
valve)
Inlet air speed : 12 – 18 m/s
Strength : 890 – 1330 Pa
Dust colection efficiency : 90%
With support leg
Connecting dryers and coolers remove dust

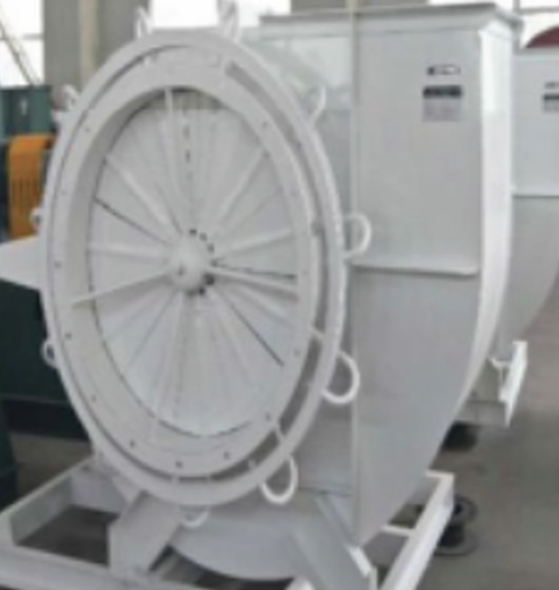

Fan for Dryer
Model : 4-72-8C
Air volume : 19646-25240m³/h
Static pressure : 3032-3143pa
Speed : 1450rpm
Motor power 18.5kw”

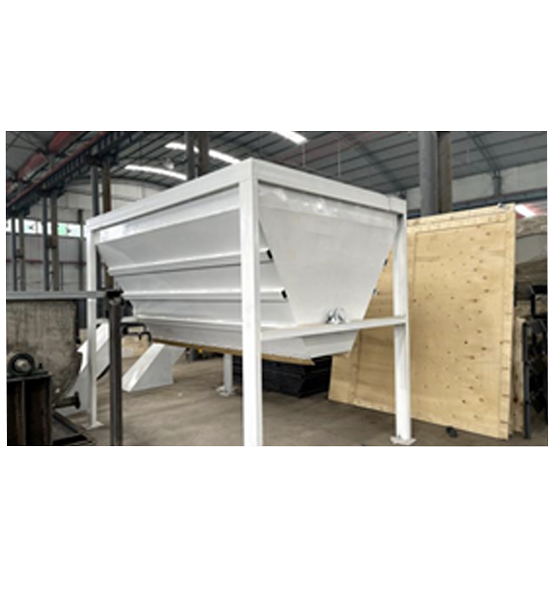

Buffer Silo
Model : LASC-1030
Silo size : 1.53m Capacity: 3 square meters Bring support With vibration motor : 0.37kw Two discharge ports, customized according to drawings Discharge port with screw conveyor : 1.kw2pcs

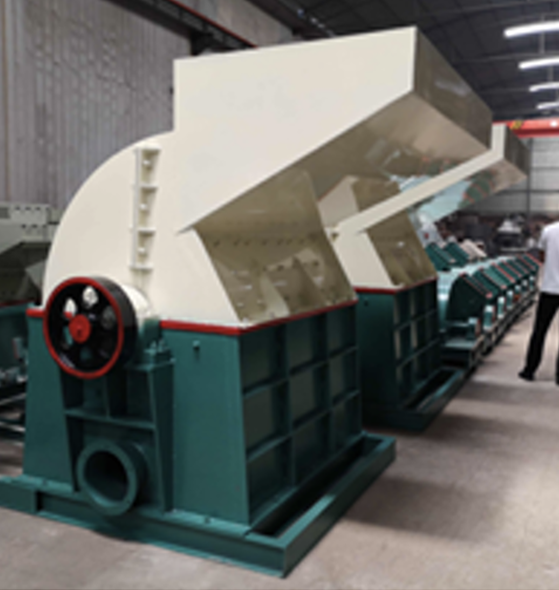

Sawdust Crusher
Model : GTS-1500
Capacity : 5-8T/H
Crusher host motor 75kw : 2 sets
Machine size : 250018502500mm
Screen mesh : 10mm (thickness 6mm)
Hammer : matching (thickness 8mm) 100
pieces
Machine weight : 3Ton
Dimension : 185013502250mm
Hopper size : 1200*500mm
Crushing the dried raw materials into sawdust

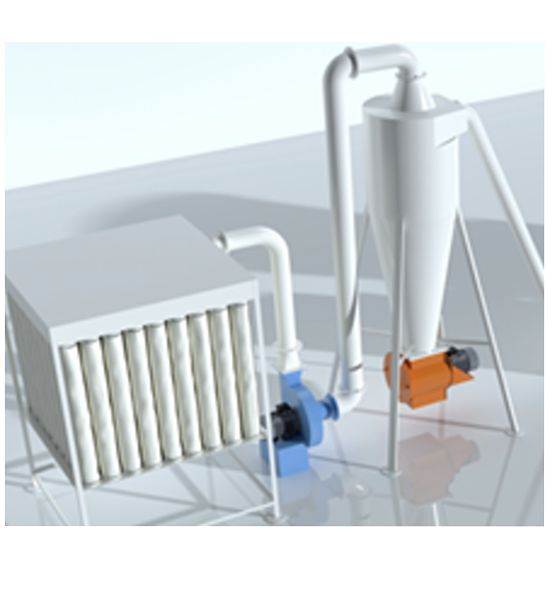

Cyclone Fan / Bag Dustfilter
Model : GTXF-1200
Dust removal diameter 1200, Sheet 3mm
Discharge port with air lock valve (baffle
valve)
With support leg
Fan : GTFJ-2K
Power : 15KW2pcs Bag dust removal system Bags : 66 = 36 bags, with stand
with pipe connection
Z Type Bucket Conveyor
Model : GTTB-500
Capacity : 4 – 6TPH
Lift angle : 90 degrees
Hopper capacity : 4L
Bracket : 10# channel steel
Conveying powdery raw materials
Motor powder : 1.1kw
Lifting height : 2M
Total length of equipment : 5m
Large Inclination Belt
Conveyor
Model : GTD-650
Capacity : 6-8T/H
Speed : 1.25-2.0m/s
Motor : 4kw
Inclination : 90
Length : 6m
Belt width : 850mm
Machine width 950mm
Frame : 10# channel steel
Z- type
With bracket, transporting powdery materials

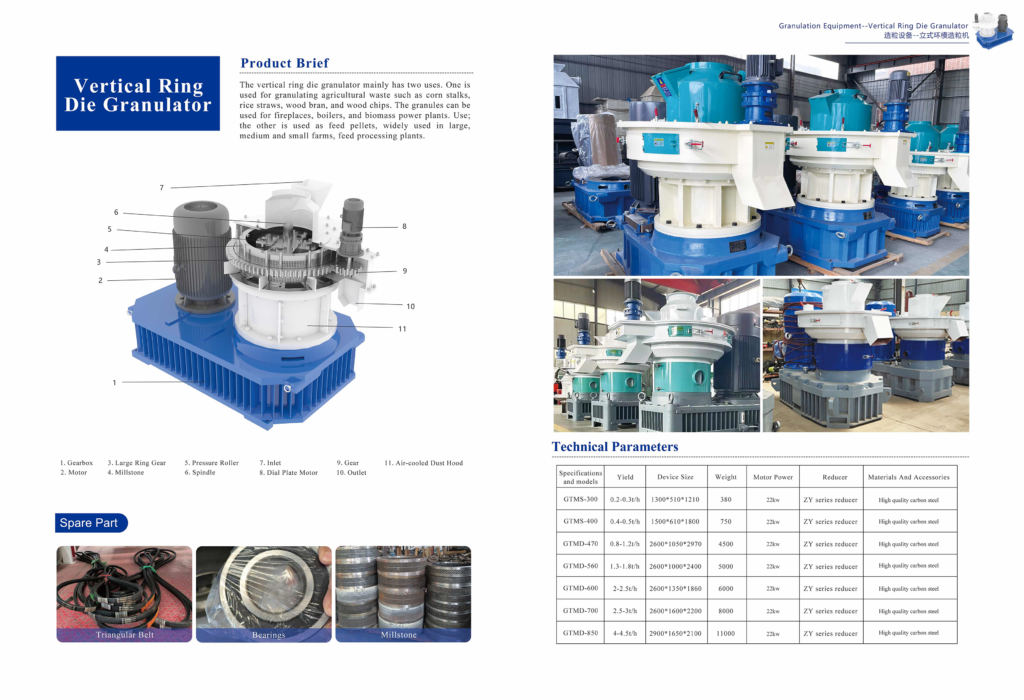

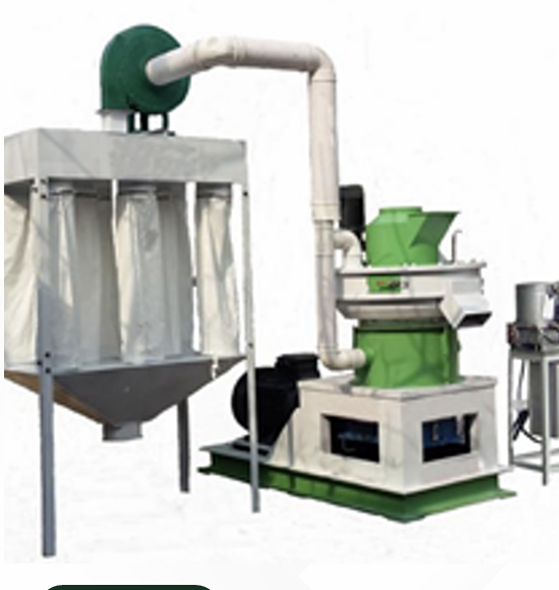

Ring Mold Granulator
Model : GT-560
Power : 132kw
Pe let Diameter : 6-12mm
Capacity : 2T/H
Weight : 5.6T
Equipped with dust co lector
Insta l the automatic lubrication
circulation system : 0.37kw
Pellet cut motor : 1.5kw
Dust co lect fan for 2 sets power : 2.2kw
Main machine of the whole line

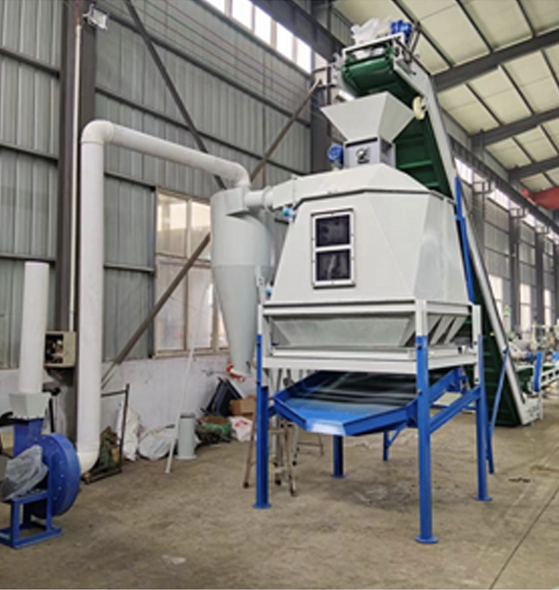

Counter Flow Cooler
Model : SKLN-4
Capacity : 5-8t/h
After cooling temperature : less than nature
temperature 3 – 5℃
Fan power : 5.5kw
Vibration motor : 1.5kw
Airlock power : 1.1 kw
Diameter of cyclone : 1000mm

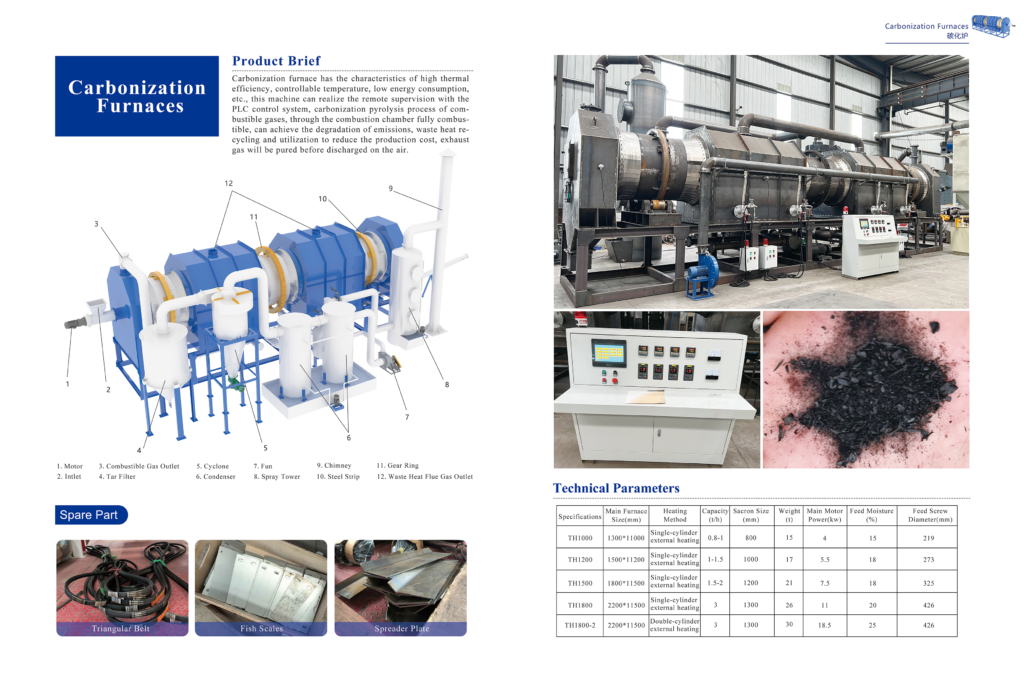

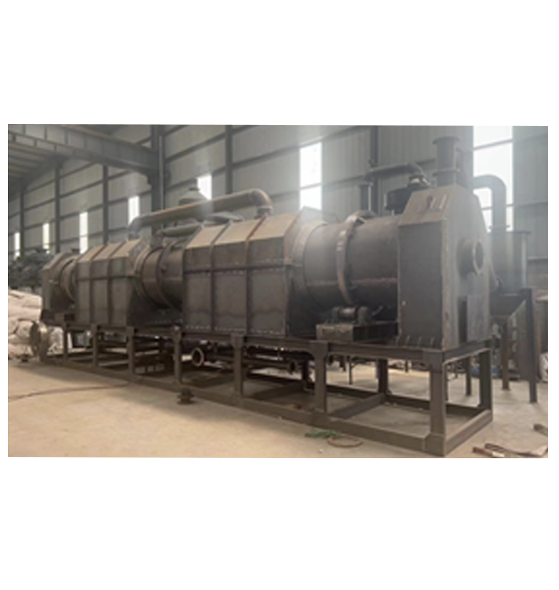

Continuous Carbonization
& Furnace
Model : LACF-1800
Biomass yield (kg) : 3 – 4 TPH
Process method : continuous working in and
out of materials
Host motor : 11KW
Reducer : ZSY-400
Speed ratio : 28
Feed air closer : 20L
Forced spiral feeding : 4KW
Diameter : 426
400400 double opening pneumatic gate valve Main furnace size (mm) : 220011500
Equipment area : 500²
Heating method : single cylinder external
heating
Equipment weight : 26T
Main furnace material : Q245R+310S
Working pressure : slight negative pressure
Feeding requirements : Feeding size ≤ 30mm,
moisture content less than 15%
Speed : 4-10 rpm
Transmission mode : external gear
transmission
Cooling method : water jacket spiral conveyor
physical cooling
Hot air circulation fan and power (kw) :
9-19-5A (11KW)
Flue gas treatment fan and power (kw) :
Y5-47 (15KW)
Burner model and quantity : 105-2512 Spray tower : 13004500
Cooling water seal : Φ100012002
Second combustion chamber burner :
RS60/M
Function : Secondary potassium removal,
carbonization to increase calorific value

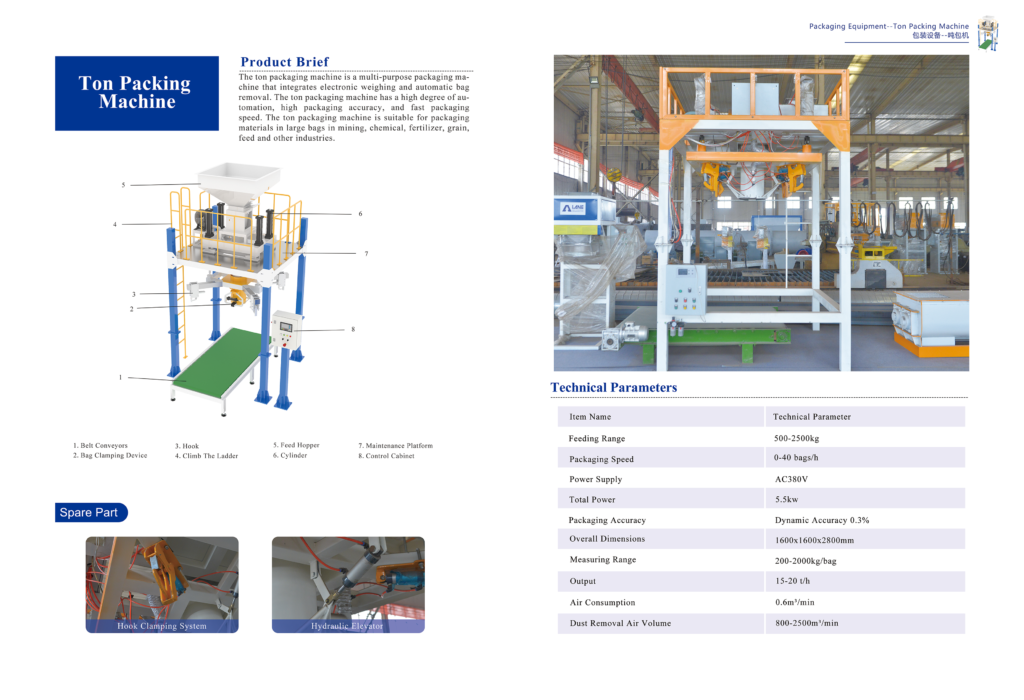

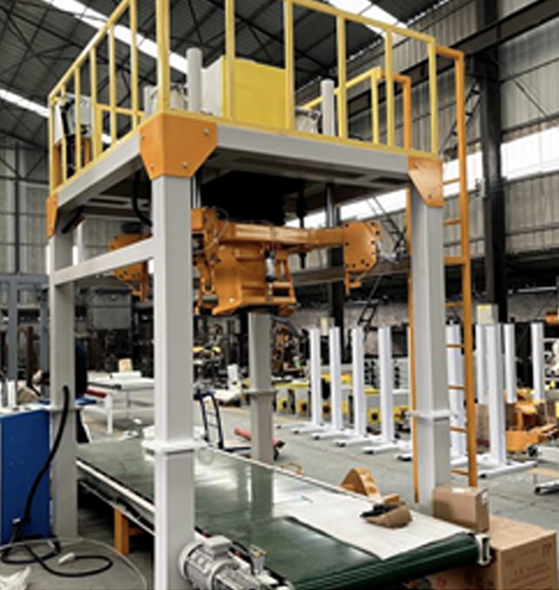

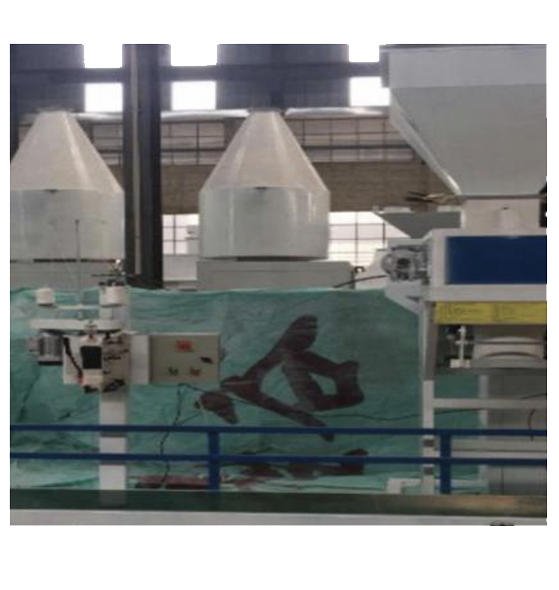

Ton Bag Packing Machine
Model : GTDB-1
Packaging accuracy : ±0.2%
Air source : 0.8MPa
Power supply : AC380V
Total power : 5.5kw
Dimensions : 160016002800mm
Measuring range : 200-2000kg/bag
Output : 8 – 10 tons /hour
PLC control box
Equipped with 2m³ hopper
With 3m belt conveyor
The bracket is made of 10# square steel,
Add protective fences and ladders.
Large Inclination Belt
Conveyor
Model : GTD-500
Capacity : 4-6T/H
Speed : 1.25-2.0m/s
Motor : 4kw
Inclination : 45
Length : 9m
Belt width : 500 mm
Machine width 720 mm
Frame : 10# channel steel
Z type
With bracket, transporting powdery
materials

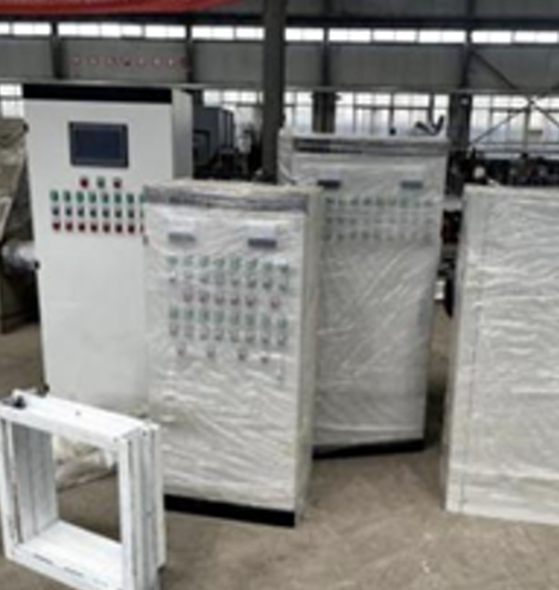

Electric Control Cabinet
Model : GTEC-1
(380V/50HZ/3P)
Total motors power : 520.74kw
Increasing 5% for Standby
Delixi or Schneider electric components
Connect the soft starter to control the
entire production line

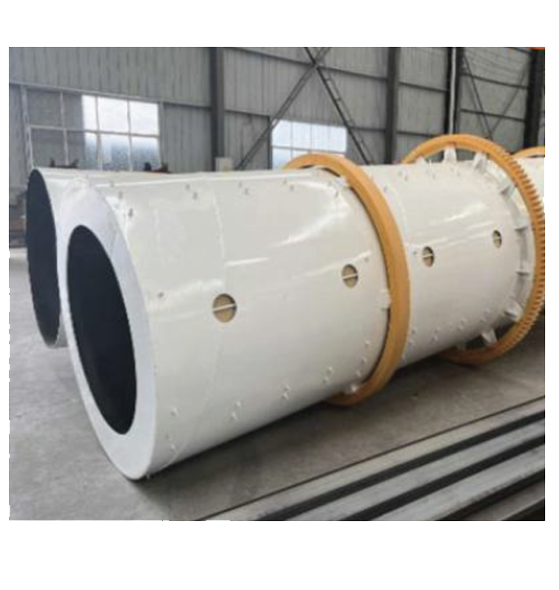

Rotary Drum Granulator
Model : GTZR-1240
Cylinder size Φ1200 x 4000
Capacity 2-5 T/H
Speed 134/ min, slope 2 – 2.5°
Power 7.5 KW
Motor brand WEG Wangpao
Lined with rubber sheet
The inner Linner is fu ly welded
Cylinder ro led steel plat with t=8
Bracket 10# channel steel
Transmission B-Type V-belt
Fan for Dryer
Model : 5-47-6C
4-72-6C-7.5 KW
Air Volume 7729 – 10234 m²/h
Static pressure 351 – 1265 pa
Speed 960 -1450 RPM
Motor power 7.5 KW
With air volume control valve
Connect the dryer provide
The air volume
Fan for Cooler
Model : 5-47-5C
4-72-6C-5.5 KW
Air Volume 7729 – 10234 m²/h
Static pressure 351 – 1265 pa
Speed 960 -1450 RPM
Motor power 7.5 KW
With air volume control valve
It can be used with cooler

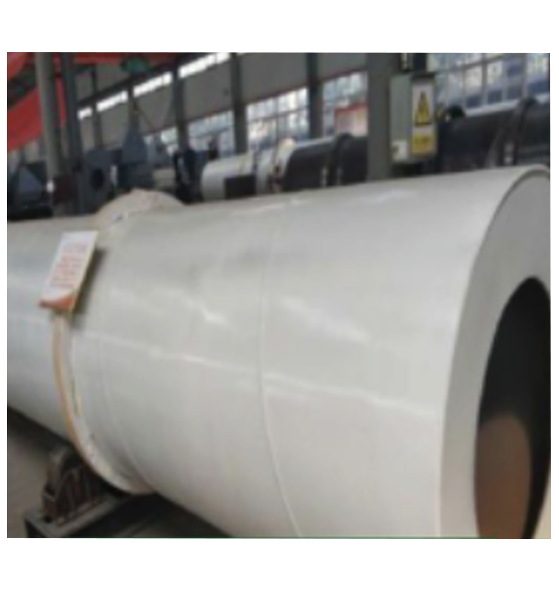

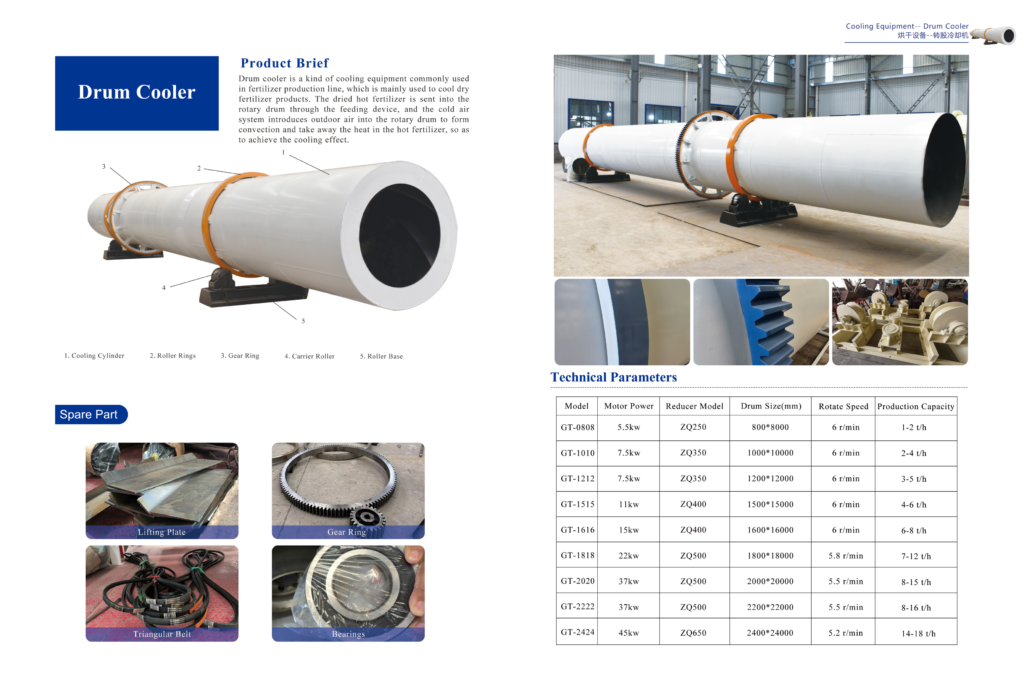

Rotary Cooler
Model : GTRD-10-10
Output 2-3 T/H motor power 5.5 KW
Cylinder Φ1000 x 1000 mm
Speed 5r/min, slope 2 – 2.5°
Prod. Infeed temperature 60-80°C
Prod. Output temperature 20-40°C
Steel plate thickness 6mm
Roling rings, gears, retaining wheels,
supporting wheels, etc are a l heavy-duty
steel castings
Material high quality car bon steel
Cylinder steel plate with t=8
Fan for Dryer
Mode : GTDP-4
Hopper size 1000 x 100 x 4 pcs
Silo capacity 1.5 F
Power 1.1 KW x 4
PVC drive belt length 2m wight system
tension or pressure sendor
Viewing windows for level control
Measurement error of +/- 0.5 kg
Silo thickness T=3
Support 10mm channel steel
Continuous batching ensure enough supply of
material

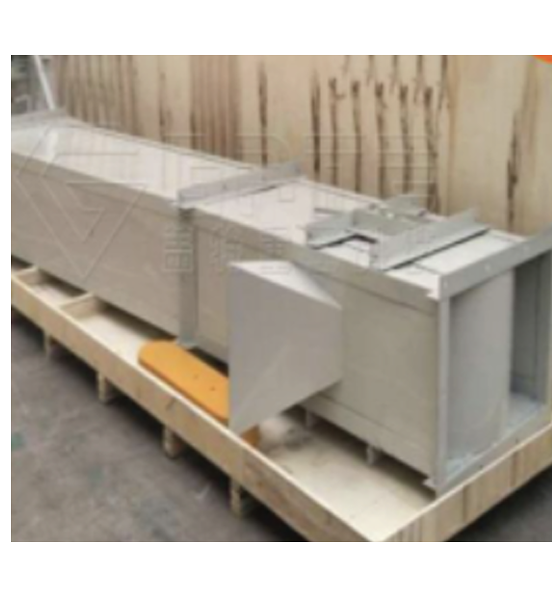

Bucket Elevator
Model : GTE-250
Bucket Q/H : 12/22 m²/h
Hopper width 250
Hopper volume Q/H : 1.3/ 22 m²/h
Hopper distance 360. Linear speed
1.6m/h
Maximum feed size 35mm
Lift length 5m
Device Height 6.5 m
Connect batching system & mix

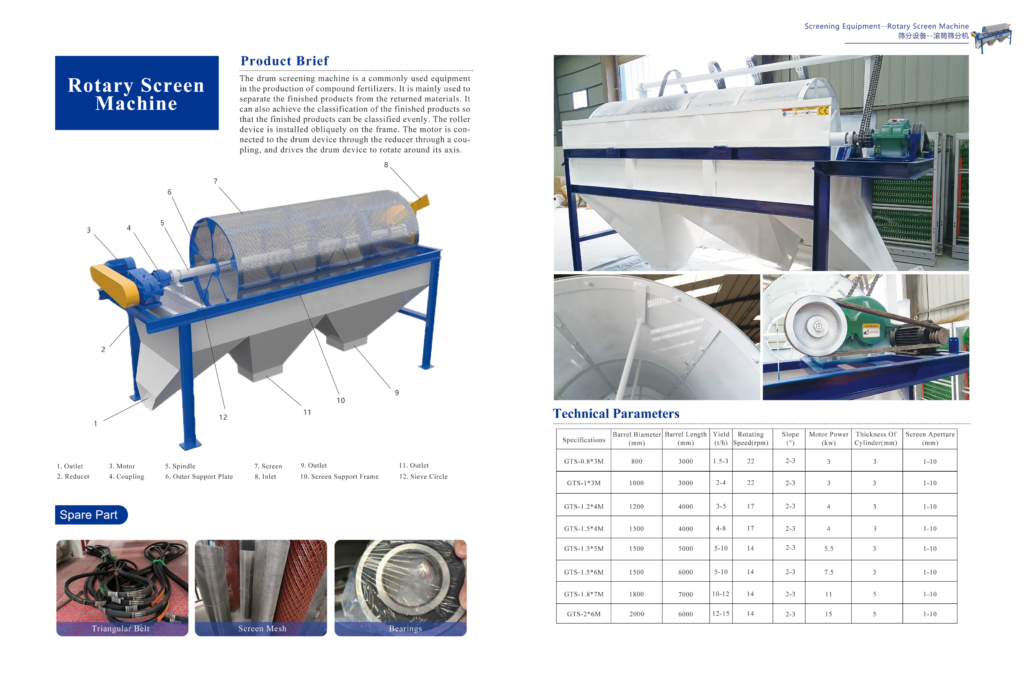

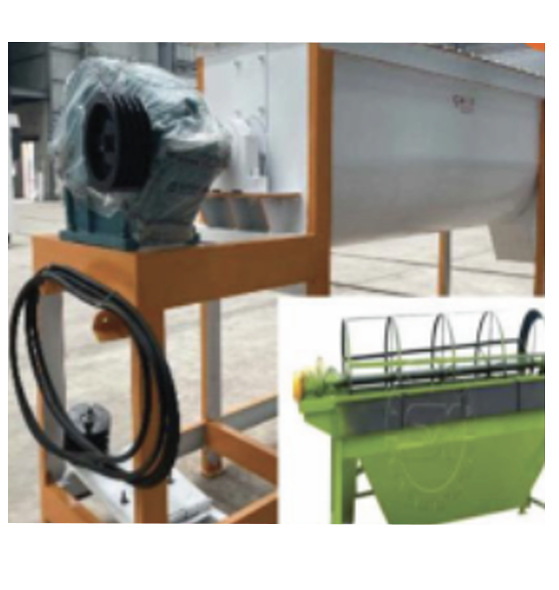

Screening Machine
Model GTS – 8030
Motor power 3KW capacity 2-3 T/H
Cylincer Diameter 0.8m, Length 3m
Equipment size 2600 x 1400 x 2200 mm
Angle 2-3° speed 22r/min
Stainless steel screen : 1 mm – 10 mm
Screen out unqualified particles
Fuction screen various solid material

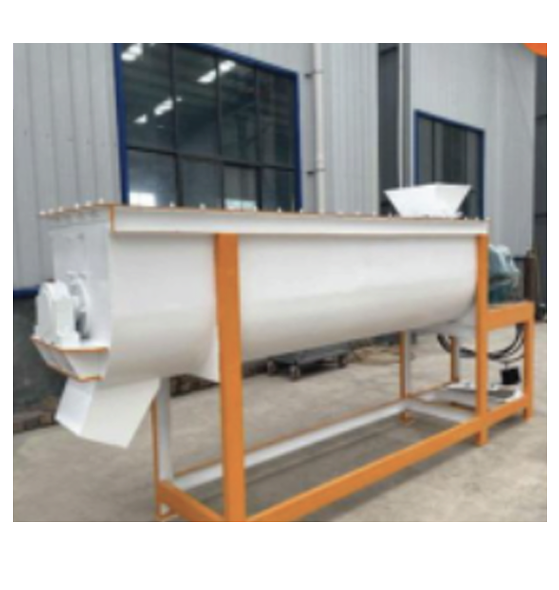

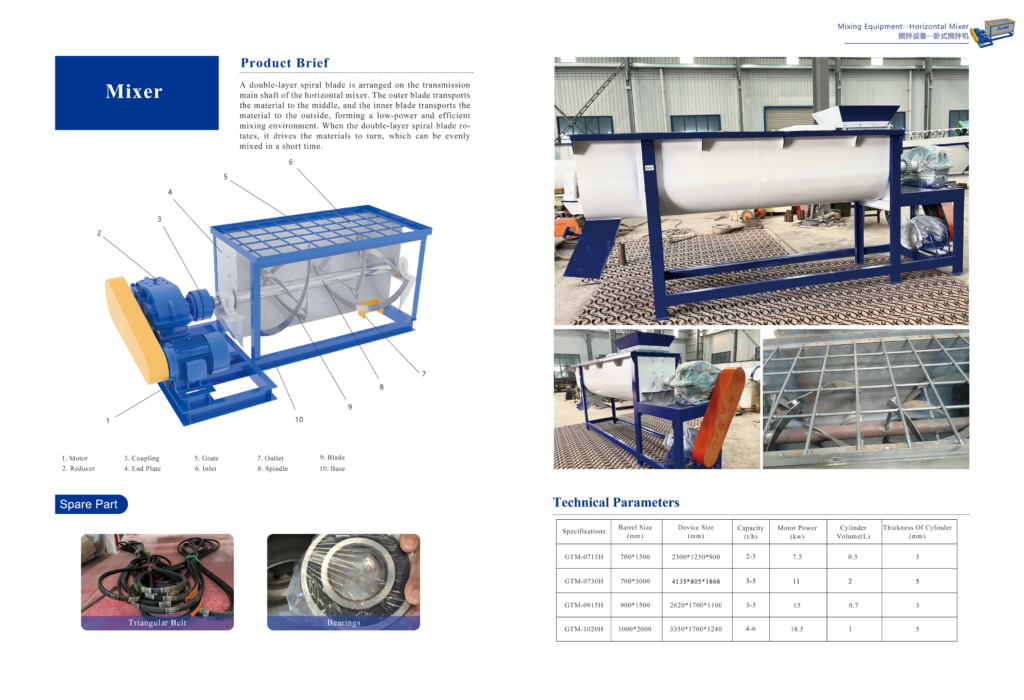

Horizontal Mixer
Model : GTM-7030
Motor power 7.5 KW
Capacity 4-6 T/H
Cylinder Size : 3000 x 7000 x 750
Cylinder volume : 2.1 m²
Equipment size 3520 x 1300 x 900
Cylinder : Steel plate with T=5
Bracket 12# channel steel
Stirring shaft 76 x 8
Shaft head made of 45#
With reinforment grate plate
Fan for Cooler
Model : 5-47-5C
4-72-6C-5.5 KW
Air Volume 7729 – 10234 m²/h
Static pressure 351 – 1265 pa
Speed 960 -1450 RPM
Motor power 7.5 KW
With air volume control valve
It can be used with cooler
Rotary Cooler
Model : GTRD-10-10
Output 2-3 T/H motor power 5.5 KW
Cylinder Φ 1000 x 1000 mm
Speed 5r/min, slope 2 – 2.5°
Prod. Infeed temperature 60-80°C
Prod. Output temperature 20-40°C
Steel plate thickness 6mm
Roling rings, gears, retaining wheels,
supporting wheels, etc are a l heavy-duty
steel castings
Material high quality car bon steel
Cylinder steel plate with t=8

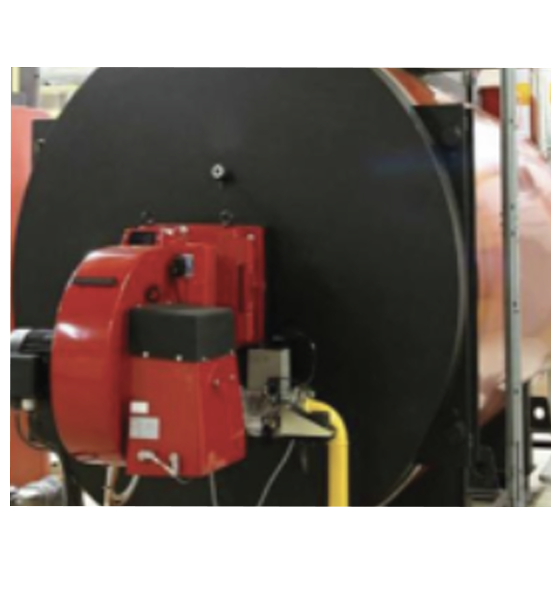

Steam Boiler
Model : GTSW-1
Rated evaporation 1.0 T/H
Rated steam temperature 194°C
Rated steam pressure 1.25 MPa
Feed water temperature 20°C
Operationg water capacity 2.92 m²
Hydrostatic tea pressure / MPA 1.65
Design thermal efficiency > 82.91%
Ful consumtion 180 – 231 Kg/H
Total voltage 8.4 KW

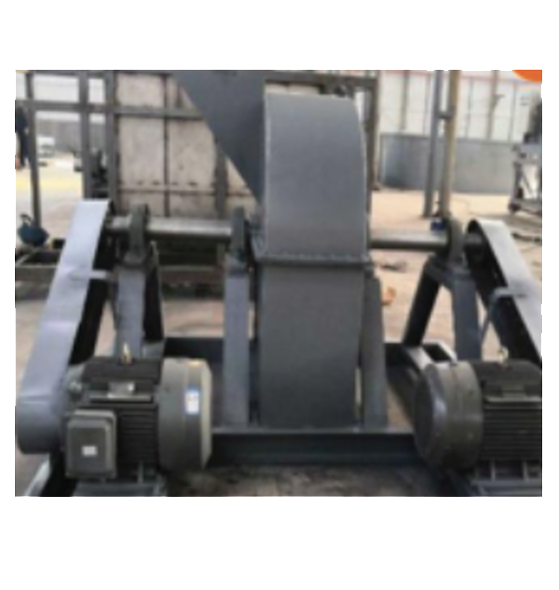

Cage Crusher
Model : GTC-40 N
Capacity 1-3 T/H
Power 5.5 x 2 KW
Overa l dimensions : 1430 x 1400 x 1200
Feed size 300 x 500
Discharge size Φ 200
Double bearing design
Cage rod 14 square steel
Rotor plate T = 8 steel plate
The she l is T=6 steel plate
The support adopt 10# channel steel
Transmission type B V Belt
Function crush the granular material into
powder
Hot Air Stove
Model GTRF-120
Diameter 1.7m
Length 3m
Including support fan 3 KW
With air volume control valve
High temperature Thermocouple
Maximum Detection Temperature 800°
Thermostats and Bimetal Thermometers
Housing stainless steel
Lined with refactory bricks and cement
pouring, high temperature
resistance of 800°
Reserve burner conenction port

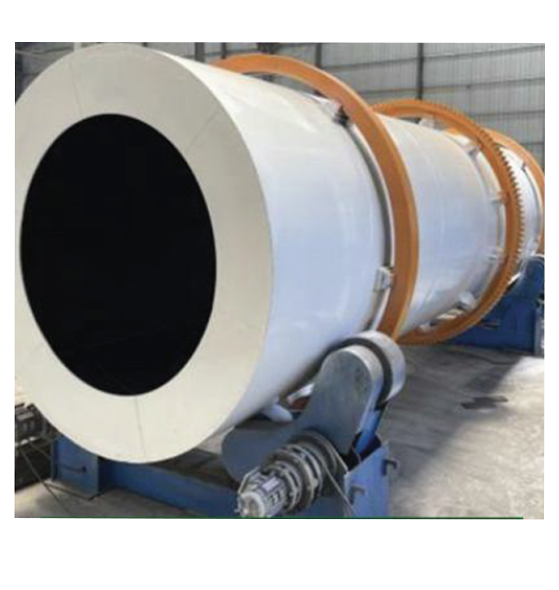

Coating Machine
Model : GTCR-1060
Power 7.5 KW, output 2-4 T/H
Cylinder Size Φ 1000 x 6000 mm
Instalation angle 2-3°
Rotation speed 13 RPM
DImension 6500 x 1000 x 1500 mm
Include rubber liner Inside drum, anti
corrosion, anti sticking
The thickness of the steel plate is 8mm
Roling rings, gears, retaining wheels,
supportin wheels, etc are a l heavy duty steel
casting
Main body : High quality carbon steel
Bracket 10# Channel steel
Rotary Dryer Machine
Model : GTRD – 1,2 – 12
Capacity 3-5 T/H
Cylinder Size Φ 1200 x 1200 mm
Speed 5r/min, slope 2 – 2.5
Motor Power : 7.5 KW
Air temperature input 150 – 500°C
Input moisture : ≤ 35-40 %
Output moisture : ≤ 5-8 %
Ring gear steel belt reinforcement
Steel plate thickness 10mm
Lifting plate thickness 6mm
Front and rear head plates are made of
6mm thick steel plate
Packing Machine
Model : GTB-50k
Packing specification 5-50 kg
Maximum weight 100kg
Packing speed : 4-6 bags/ min
Packing accuracy ± 0.2%
Air pressure 0.8 MPa
With air comrpessor 0.8 MPa
Weigthing Method Sensor
Air consumtion 0.5 Nm³/mi
Sewing machin head GK 68-6 Type
Equipped with power 2.2 KW
Dimension 820 x 1400 x 2300 mm
Belt Conveyer
Model :GTB-500
Capacity 2-5 T/H
Belth Width 500
Overa l Device Width 680
Belt conveyer length : 3mm, 4mm, 5mm,
6mm, 7mm, 8mm, 10mm
Motor power 3 KW
With support
Bracket : 10# channel steel
Bel conveyor batching to trans bucket
conveyer
We are ready to help you
achieve a more sustainable
agricultural future.
Tanpa Limbah Hasil Melimpah
PT. Forindo Mandiri Sejahtera
